SPECIFICATIONS

Battery Included: No

Brand Name: XMSJ

Color: Black

Customized: Yes

High-concerned chemical: None

Origin: Mainland China

brand name: DASN

connection type: Other

model number: B1

output power: 1000W RMS

place of origin: Zhejiang, China

power source: Other

radio function: NO

shell material: Wood

storage: NO

the body material: Wood

warranty: 3months-1year

If you have any questions, Please contact our customer service

If you are interested in it and want to get a discount, please contact us :

WhatsApp: +86 18163688938

Email: zhaoziqiang79@gmail.com

<img referrerpolicy=”no-referrer” src=”https://ae01.alicdn.com/kf/Sd10232f070fa4a0e91ae5f082d3c0eb3s.jpg” />

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:201.86491935483872px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:201.86491935483872px}#detail_decorate_root .magic-3{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-4{margin-bottom:0}#detail_decorate_root .magic-5{position:relative;width:100%}#detail_decorate_root .magic-6{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-7{width:750px;border-collapse:collapse}#detail_decorate_root .magic-8{min-height:28px;padding:5px 10px;width:185px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-9{text-align:center}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:509px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-11{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:657.5268817204301px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750px;height:657.5268817204301px}#detail_decorate_root .magic-14{vertical-align:top}#detail_decorate_root .magic-15{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-16{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-17{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-18{font-size:26px}#detail_decorate_root .magic-20{font-size:16px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:608.3447802197802px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:608.3447802197802px}#detail_decorate_root .magic-23{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-24{font-size:20px}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:646.900269541779px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:646.900269541779px}#detail_decorate_root .magic-27{font-size:18px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:326.95406929895245px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:326.95406929895245px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:1218.915343915344px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750.0000000000001px;height:1218.915343915344px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:544.6875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:544.6875px}#detail_decorate_root .magic-36{overflow:hidden;width:247.33333333333334px;height:164.37361111111113px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:247px;height:164px}#detail_decorate_root .magic-38{overflow:hidden;width:247.33333333333334px;height:164.22132253711203px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-39{overflow:hidden;width:247.33333333333334px;height:164.88888888888889px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{font-size:14px}#detail_decorate_root .magic-41{font-size:22px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:476.85185185185185px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:476.85185185185185px}

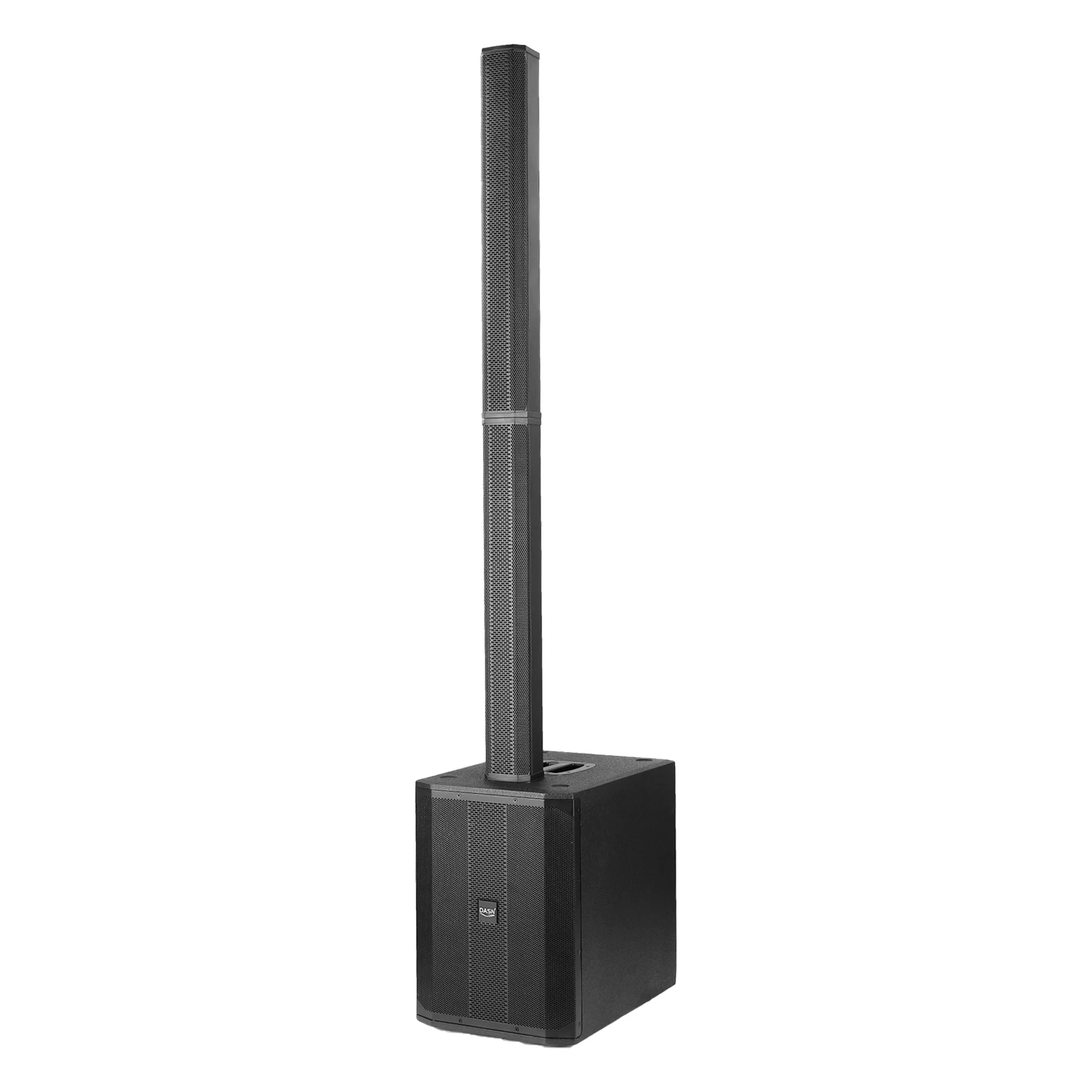

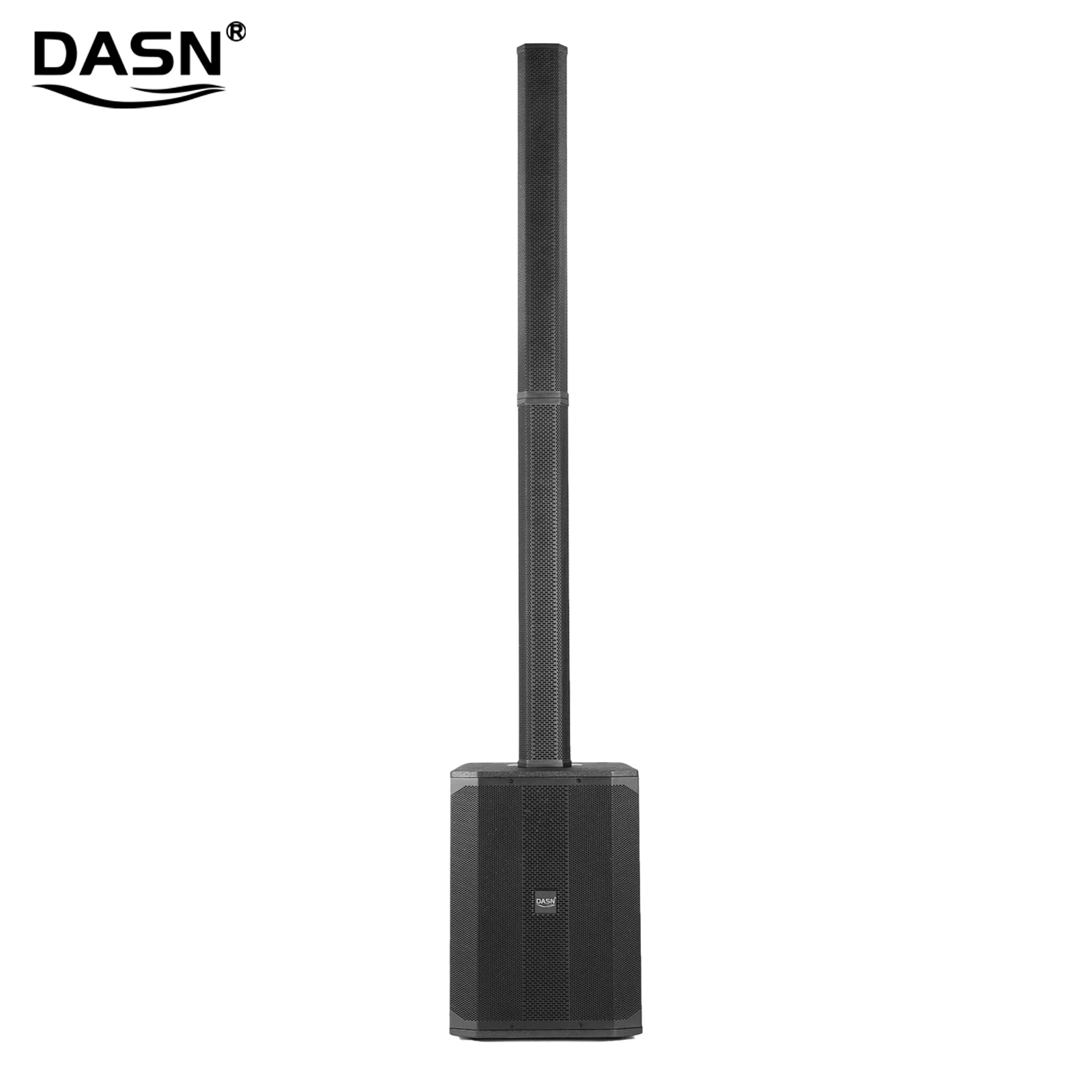

Specification

Model	B1
Type	Column PA System
Brand	DASN
Subwoofer	1 x 12″ Woofer锛� 2″ VC 2*54OZ
Column	6*3”MF (Neodymium)+1“HF (Neodymium)
Amplification	Class D Bi-amp with DSP (4 modes) Bt 5.1 with TWS
Power output (PEAK/RMS)	4000W PEAK(2000W column + 2000W sub) 1000W RMS(500W column + 500W sub)
Frequency range	40Hz-20KHz
Max SPL	125 dB
Overall system height	190 cm
Protection	DSP multiband limiter plus short circuit, over-current and thermal protection
Controls	Main level,mic level, line level, Power on/off switch,DSP contral level
Indicators	On, signal, limit, protect, signal, limit, protect (protection circuit engaged), signal, on, limit, Setup

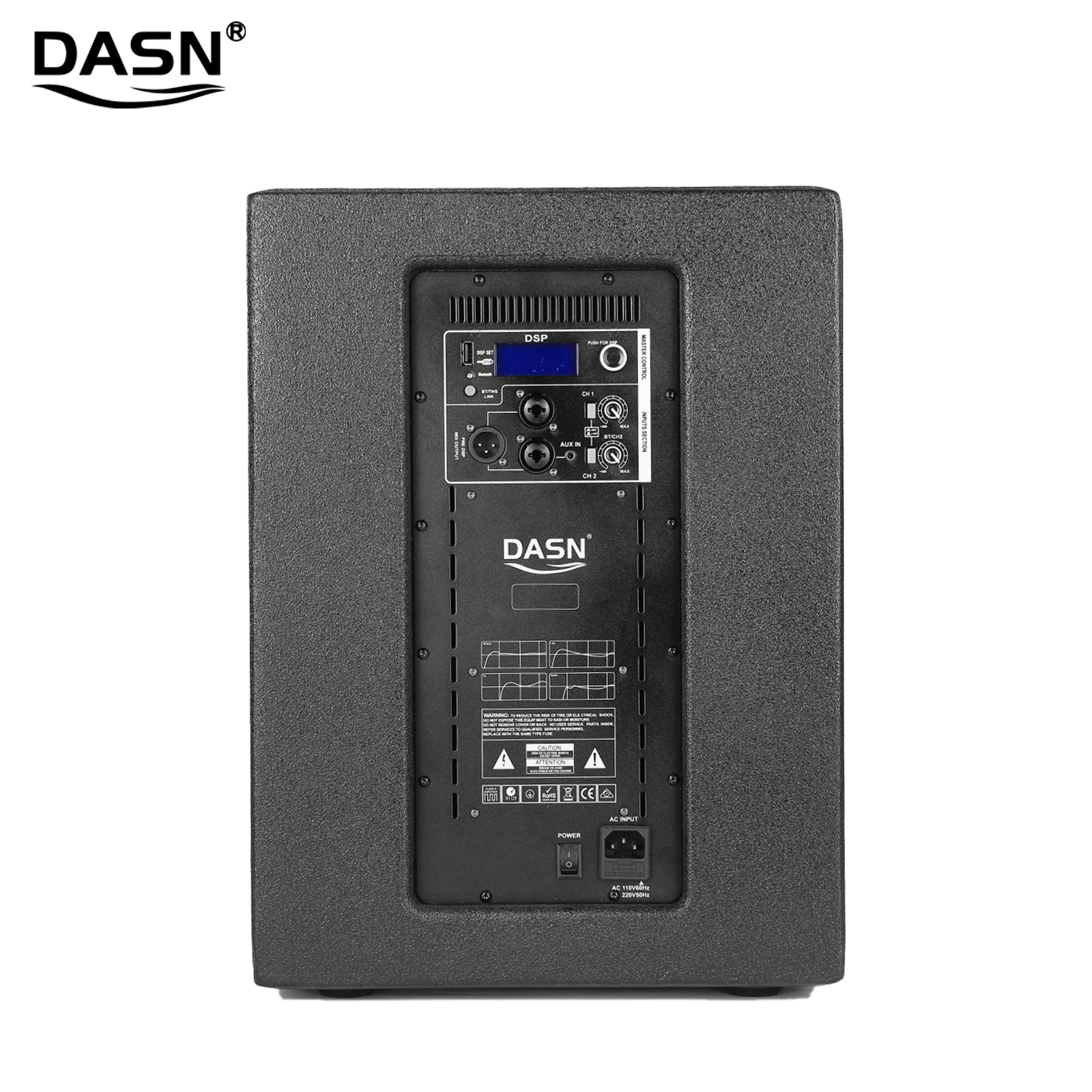

Subwoofer connectors	2 x XLR/6.35 mm combo line inputs, XLR/6.35 mm combo mic input, XLR out
Line Input	2 x XLR/6.3 mm Jack Combo
Mic inpu	2 x XLR/6.3 mm jack Combo
Satellite	Custom made multi pin connector
Cabinet material	Subwoofer: 15 mm plywood / Column: aluminium

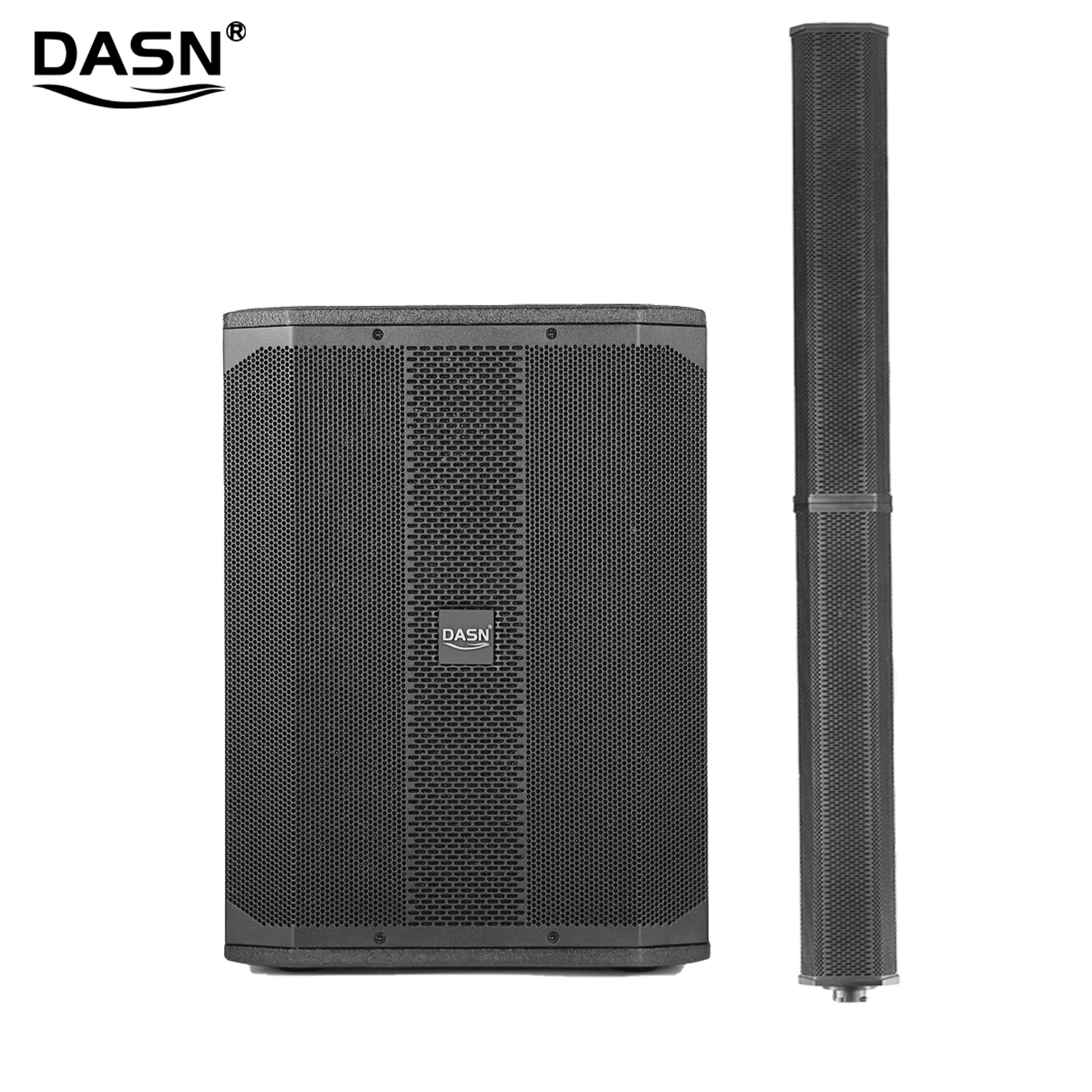

System includes	1x Subwoofer B1-SUB 1x Column C2 1x Spacer C1 1x AC Power Cord
SUB Weight (Net/Gross )	22kg/23kg
Column Weight(Net/Gross )	5.5kg/6kg
*SUB Dimensions (WDH)*	4559.558.5cm
*Column Dimensions (WDH)*	83.5×32.5×19.5cm

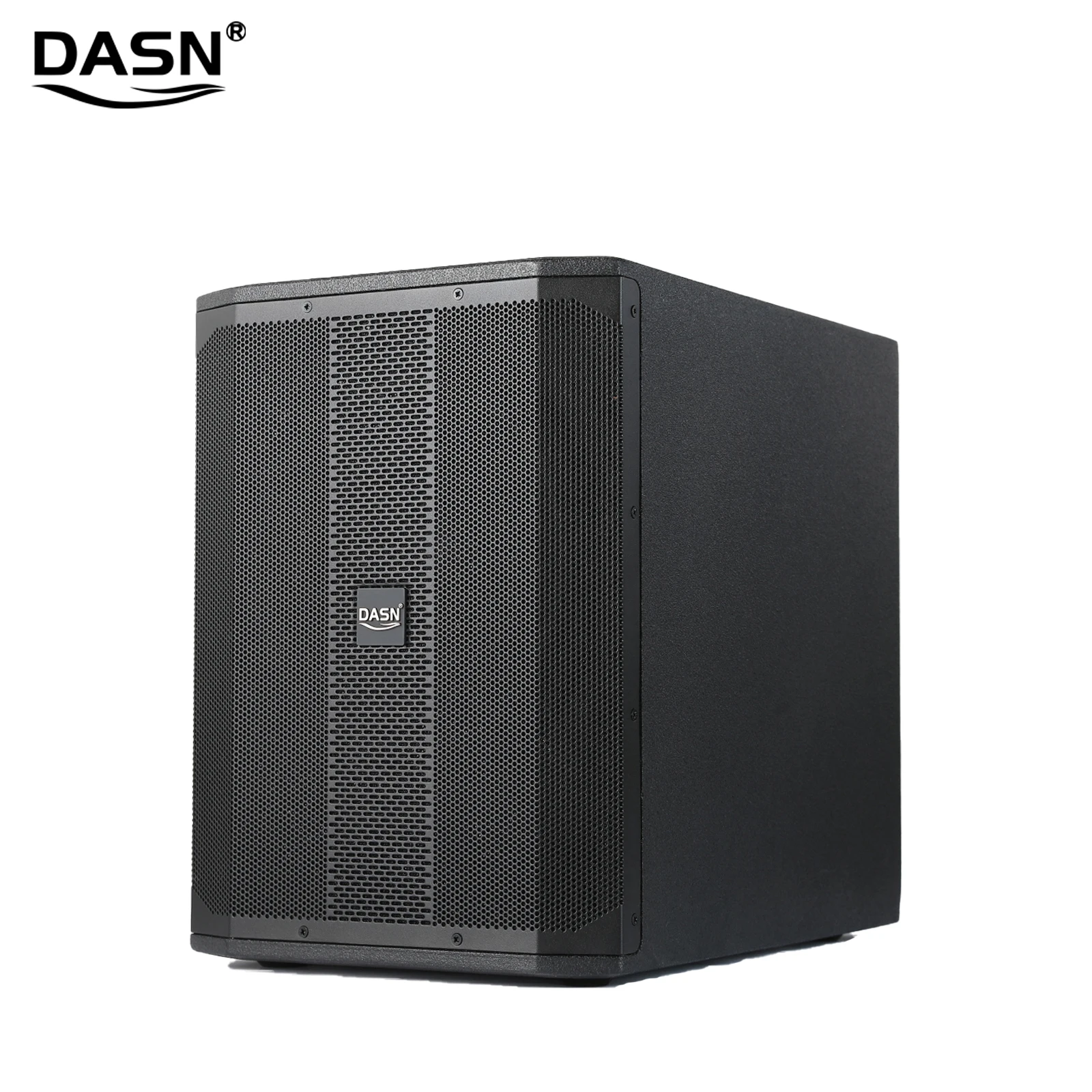

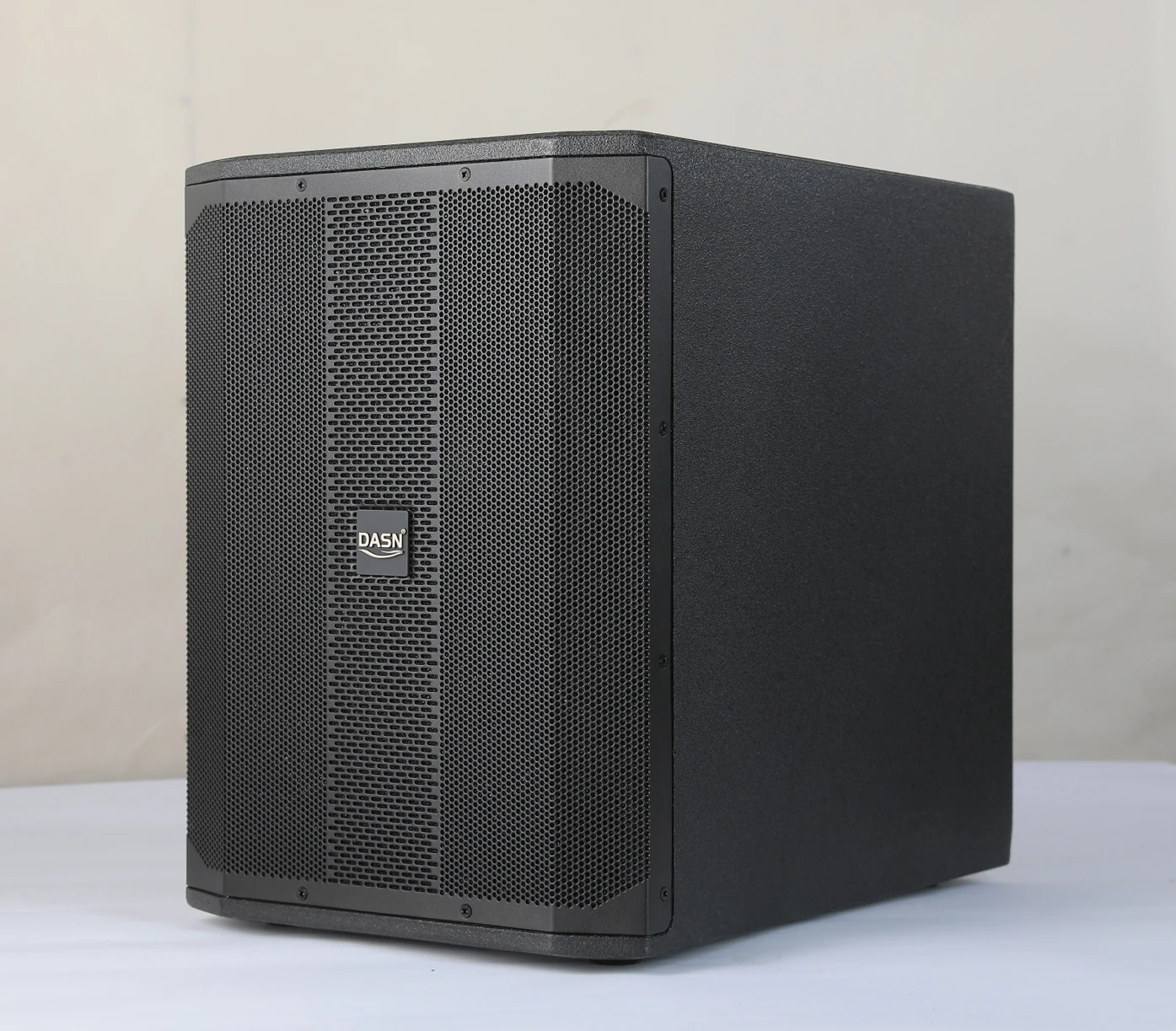

Ultra-portable 12” subwoofer

Designed for musicians, DJs, and general PA use, floor monitor, practice amplififier and primary music
system
High-output sound from a small, convenient system that is ready to perform whenever and wherever you are

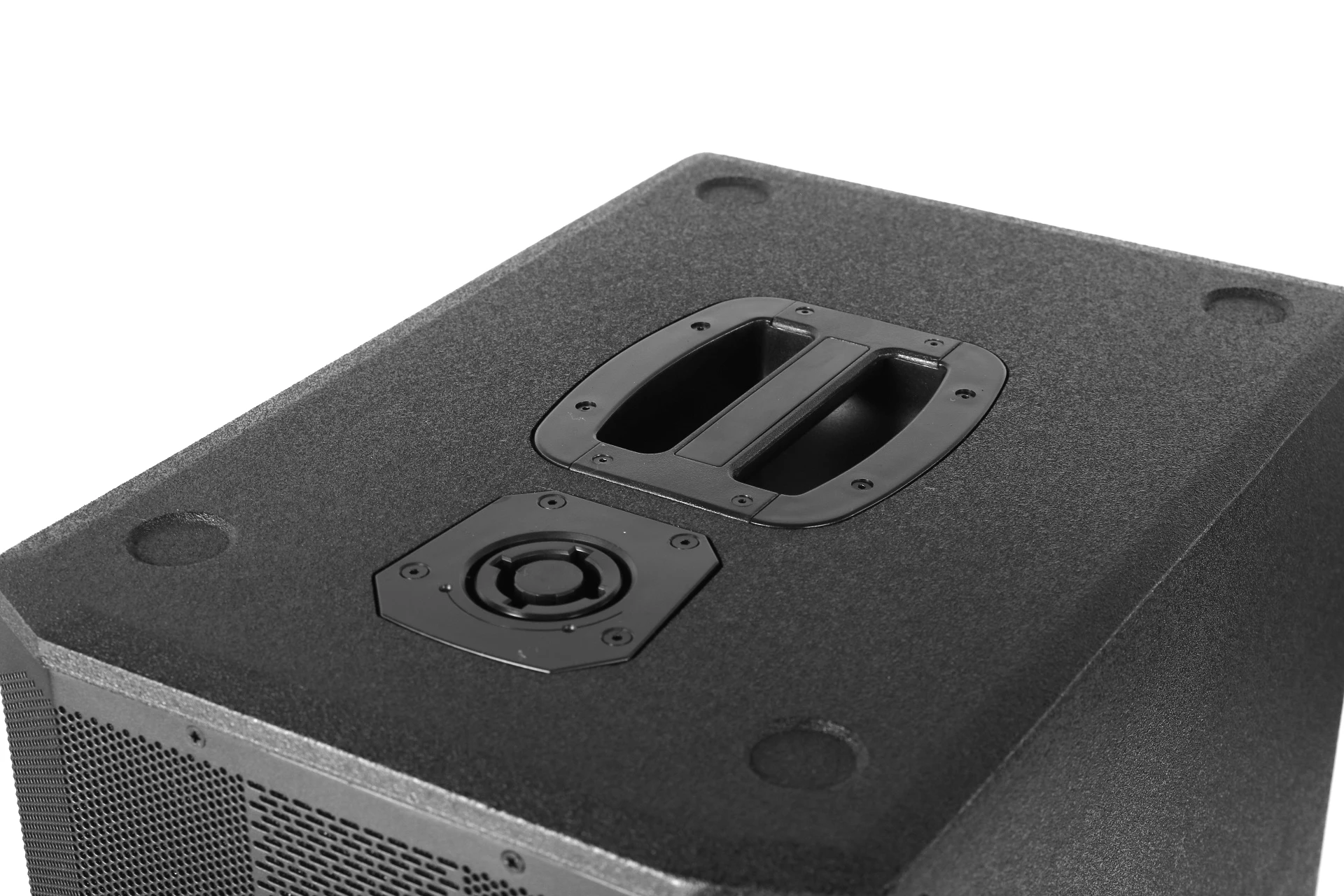

Lightweight, ultra-portable enclosure is designed to transport effortlessly using the convenient carry-handle
Compact, lightweight design

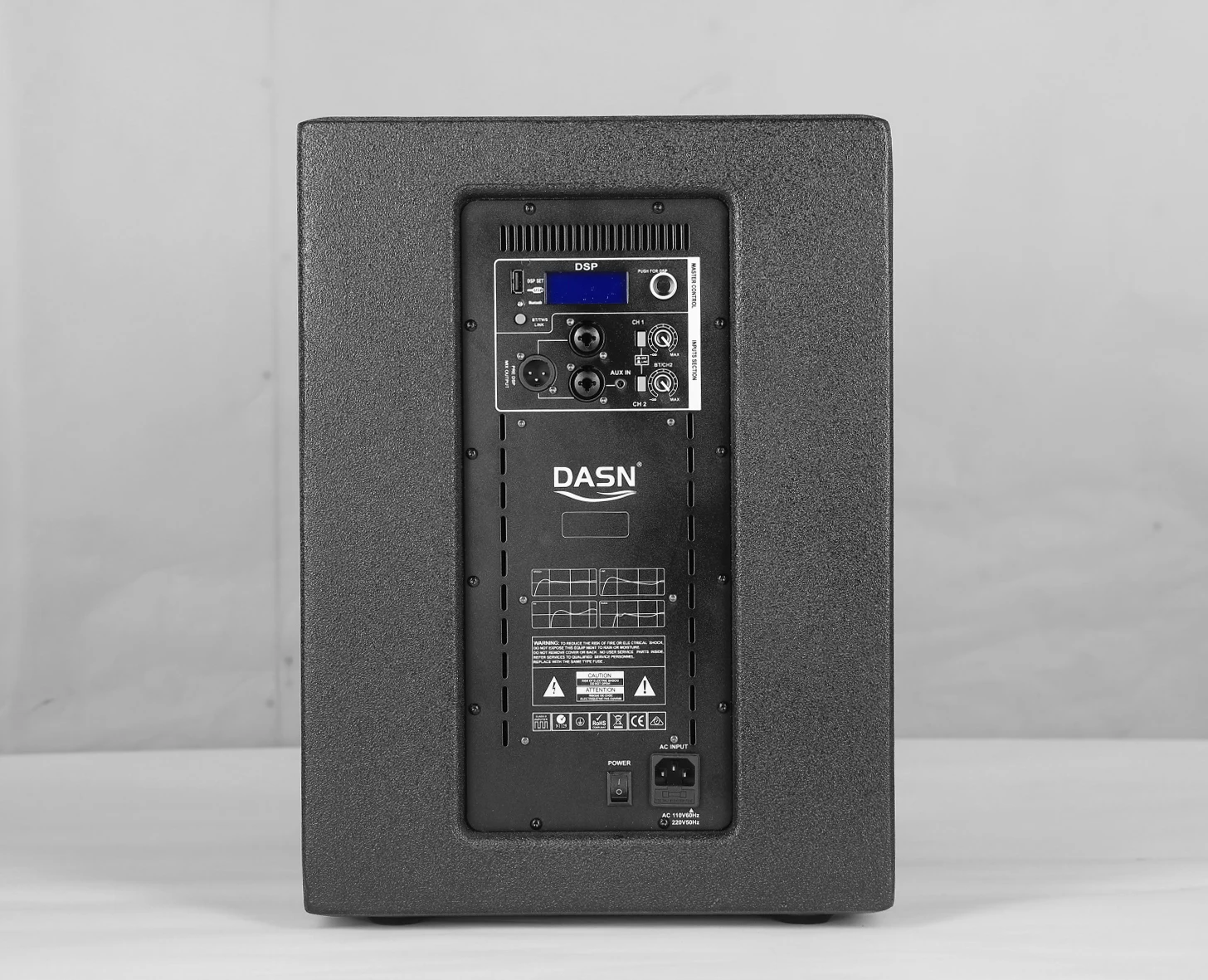

Amplifier

AcM SERIALS array design features constant horizontal directivity
coverage of 120*x40*, offering a perfect listening experience to the audience.
AcM SERIALS is the most powerful line-source in its class and offers
a particularly profound and dynamic reproduction at high levels due to
the built-in 1000W RMS power amplifier.
AcM SERIALS despite high performance, the enclosure is very compact

Features:
– 1000 Watt RMS /4000 Watt PEAK – Amplifier Type: Class D – Dsp Mode: DSP Control function – Low frequency rated power: 500W (4ohms/100Hz@THD+N1%) – Full-frequency rated power: 500W (4ohms/8khz@thd+n1%) – Bluetooth Version: 5.1

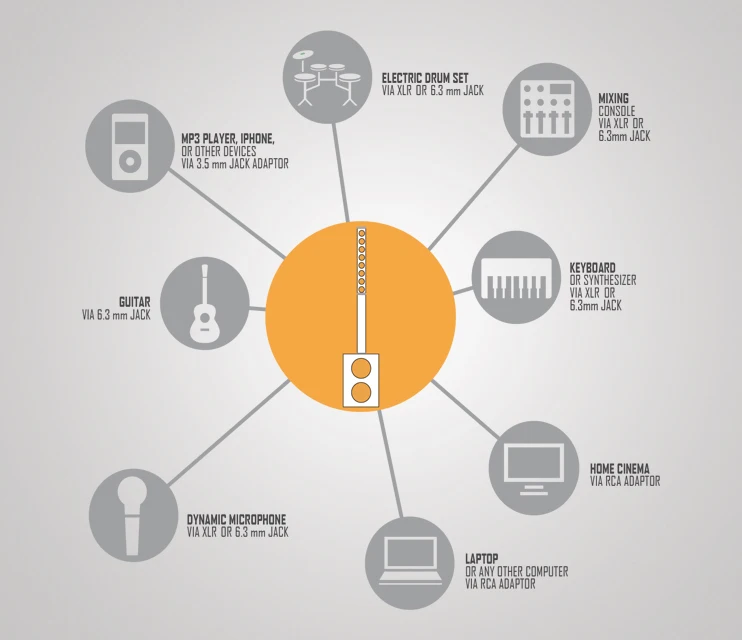

CONNECT ALMOST ANY AUDIO DEVICE The ACM features two different inputs, which can be used simultaneously. Two channel has a combo socket (XLR/jack) for dynamic microphones or line. as a combo socket (XLR/jack) for mixers or keyboards.
.

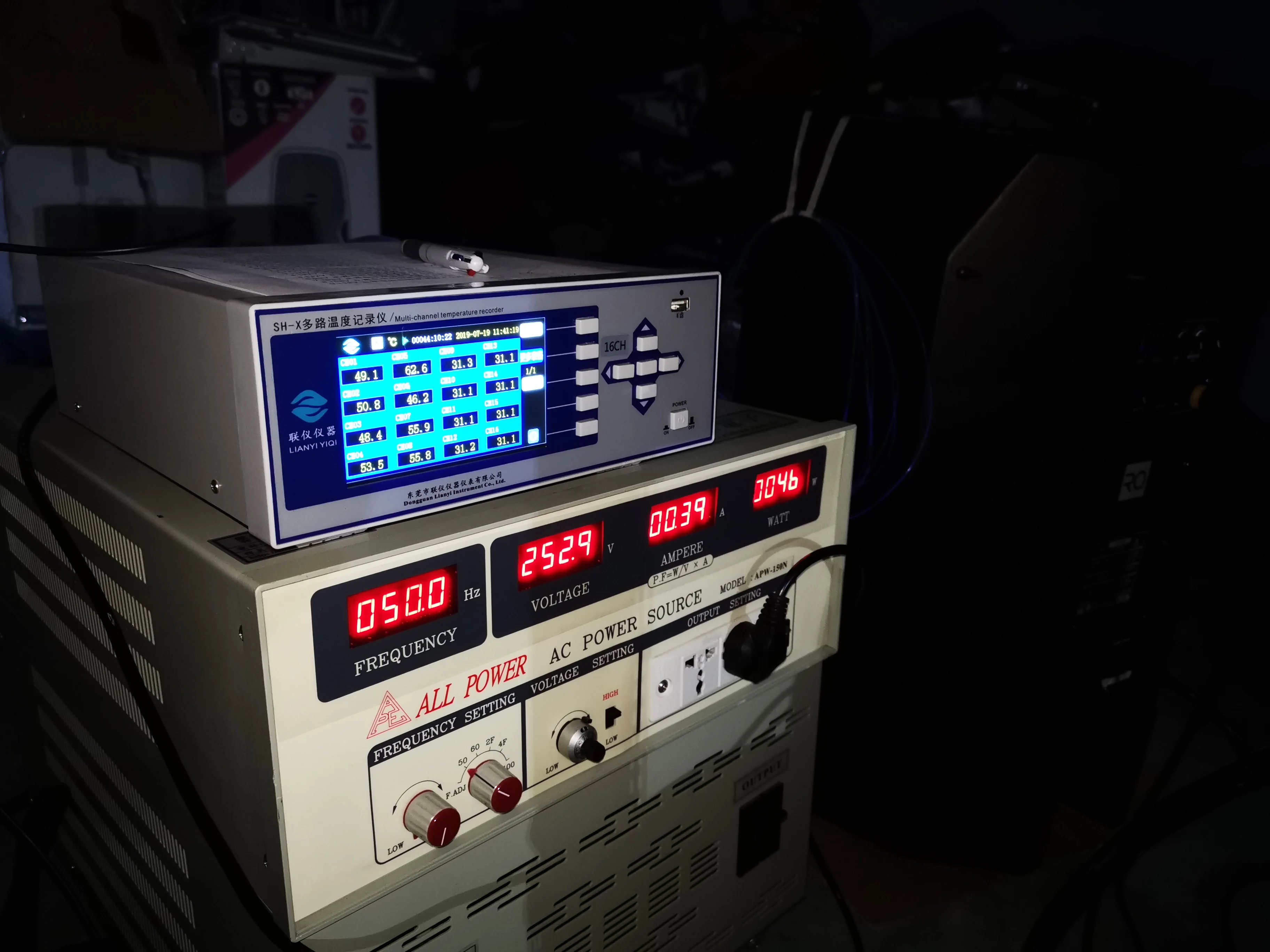

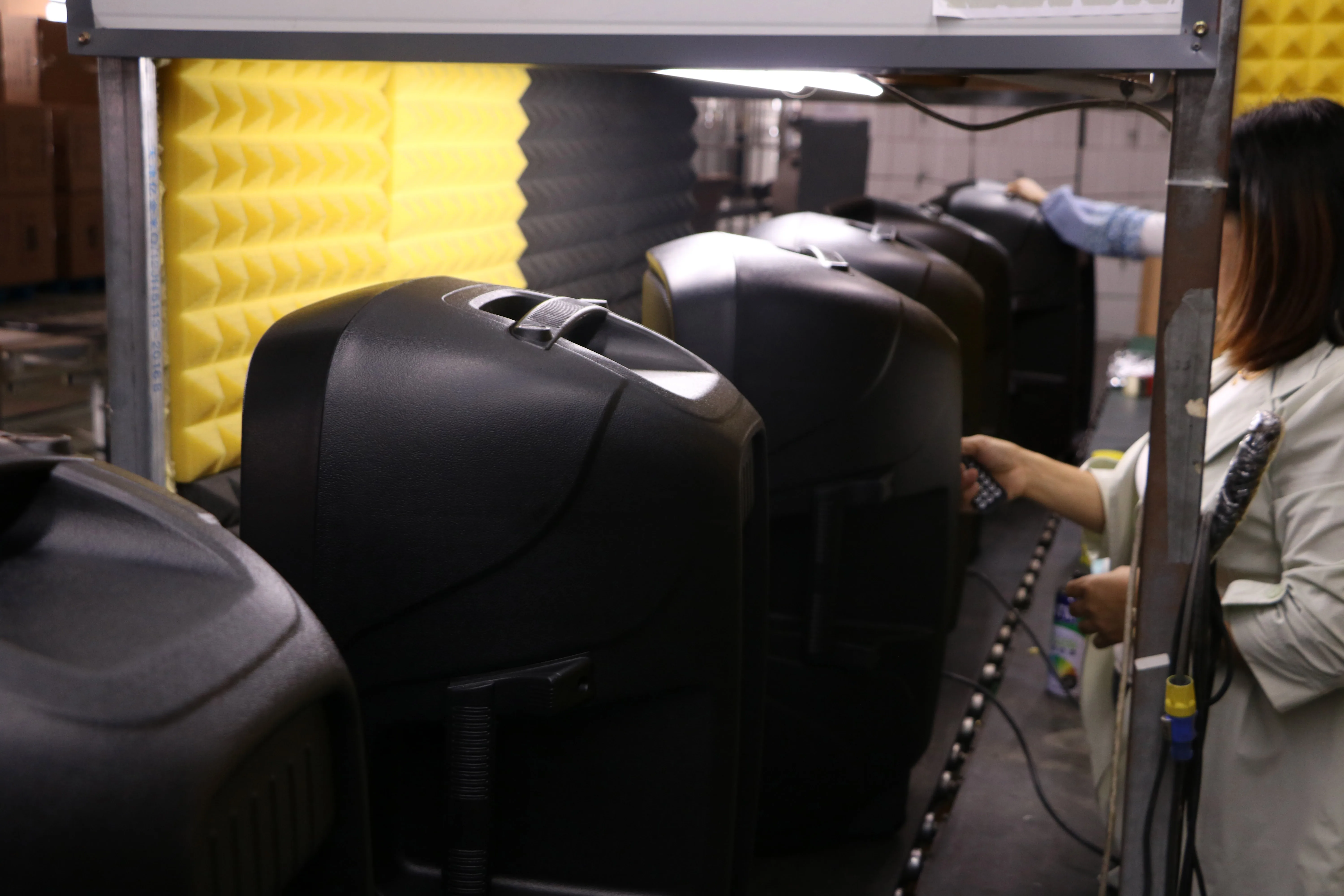

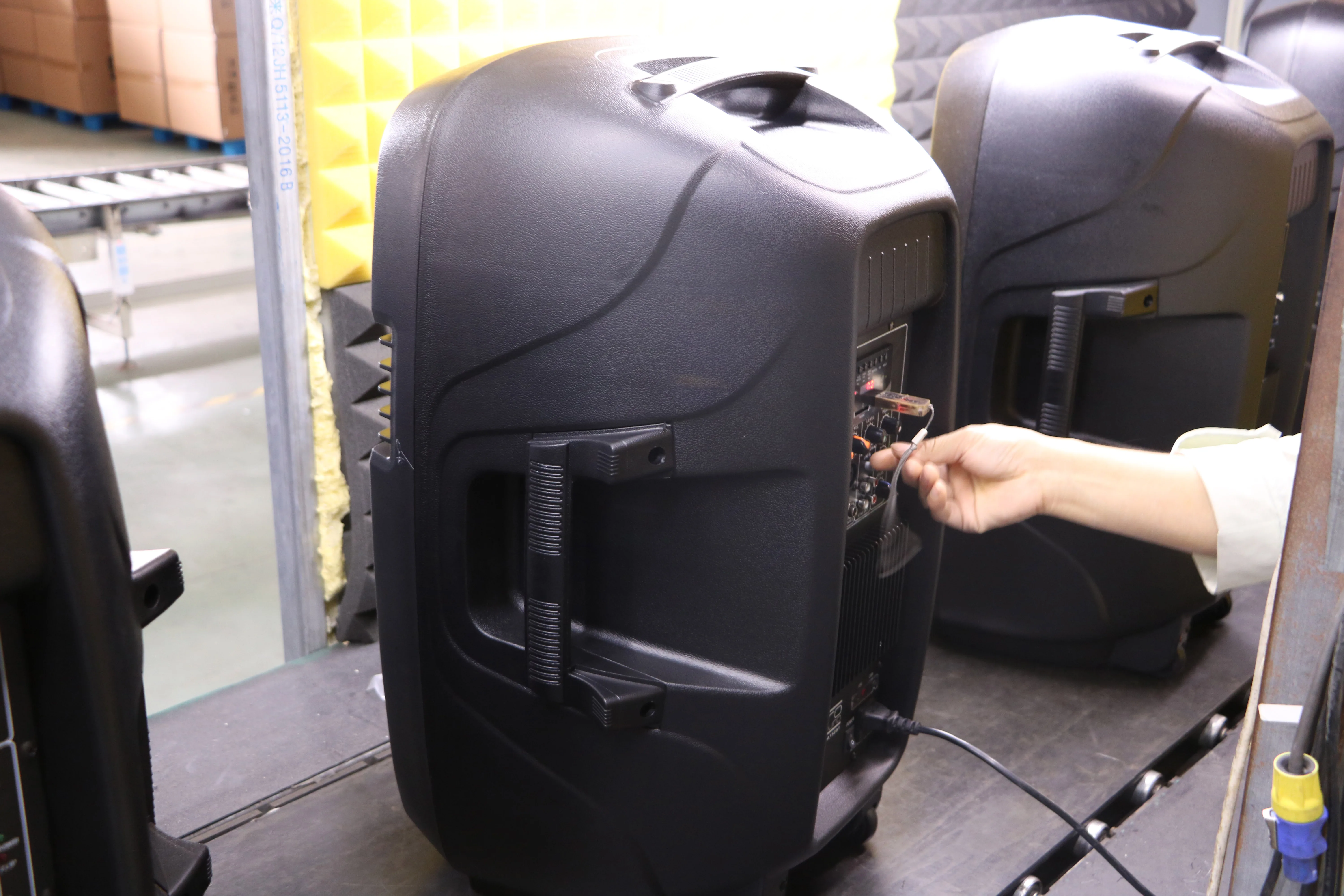

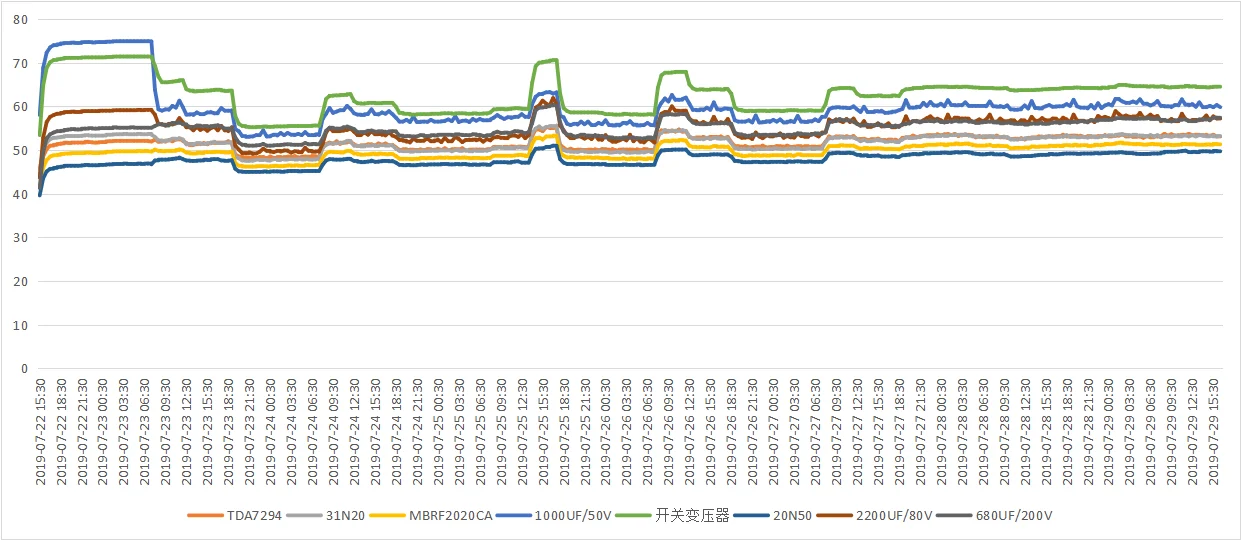

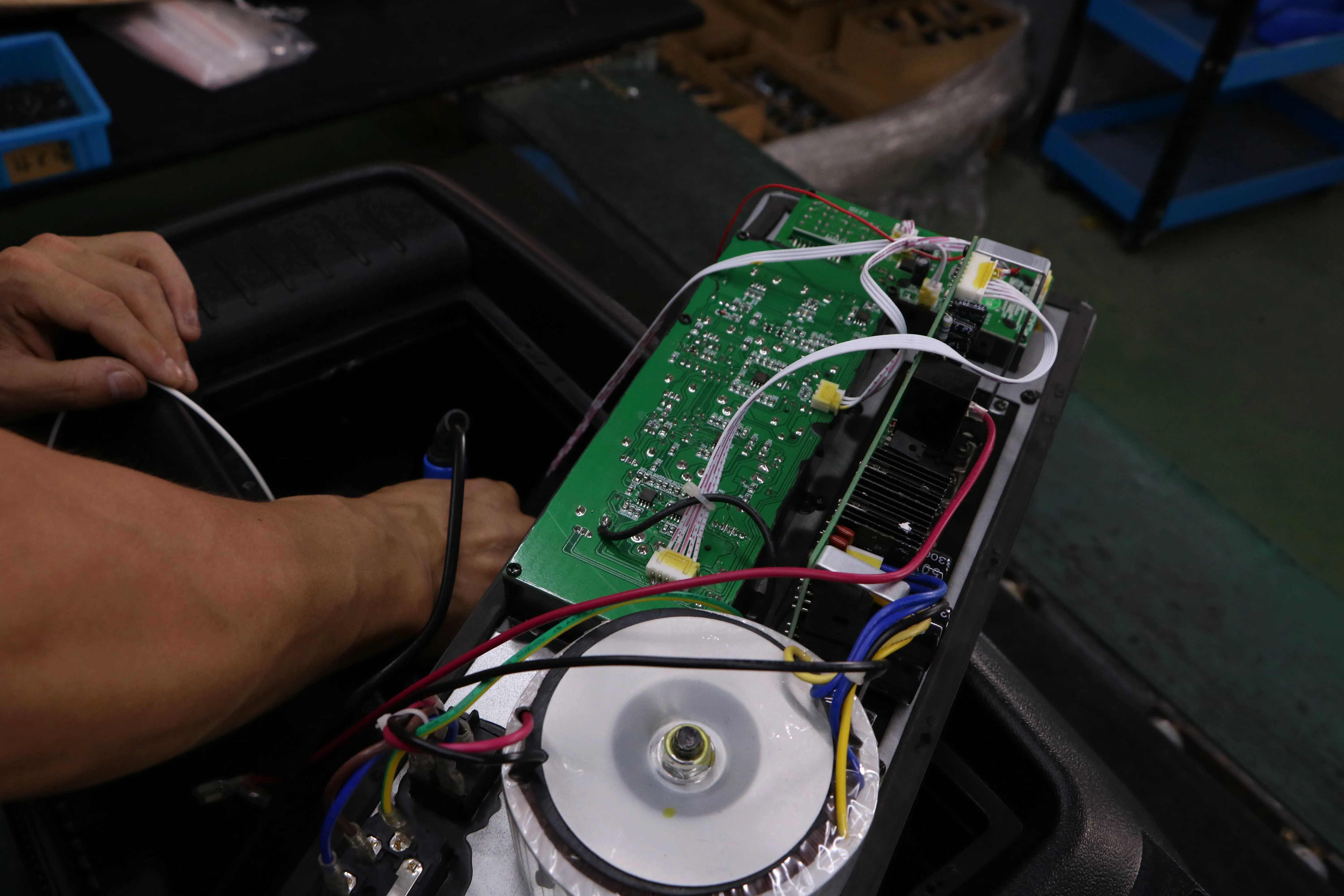

Aging test

Packing & Delivery

Company Profile

Ningbo shengchuang Electronic Co.,Ltd , a reliable professional audio expert, we provide our customers with user-friendly audio equipment that combines unmatched reliability with advanced performance features.

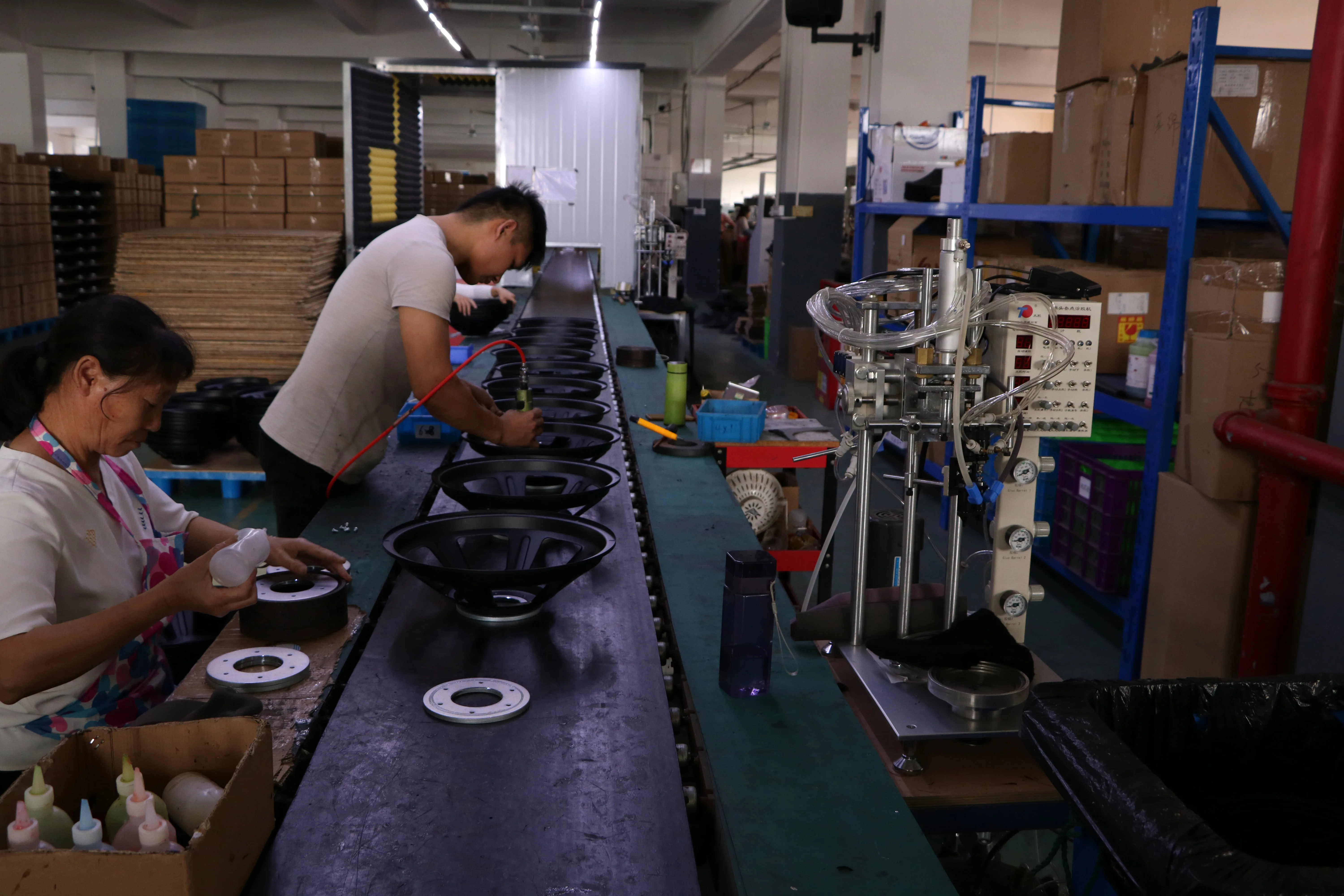

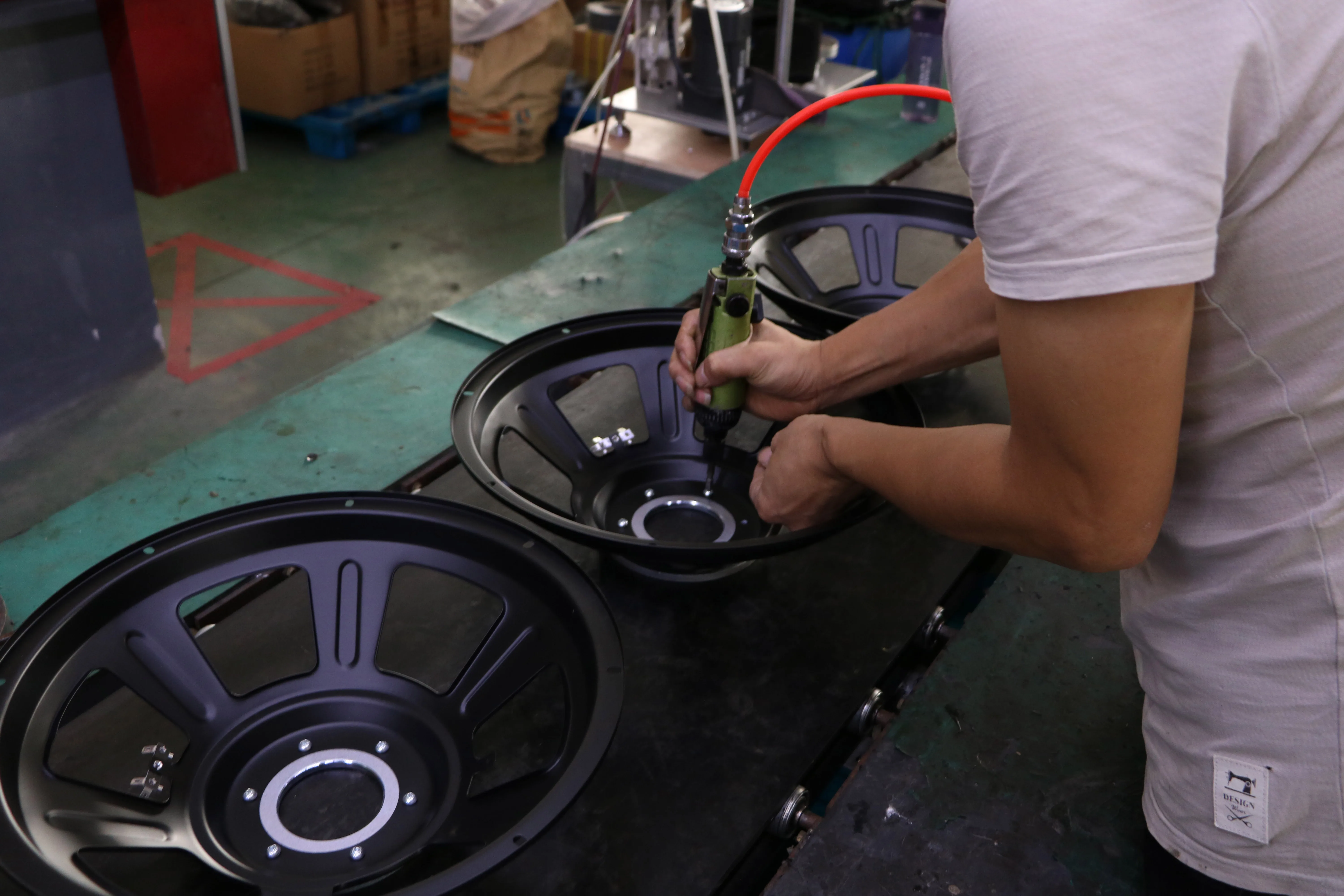

Production Process

FAQ

Q1: What is our warranty for speaker drivers?

For our speaker, we have one-year warranty.

Q2:How can i get a sample ?

If you need some samples to test,we can make as per your request .
You should pay for the transportation freight of samples and our samples cost,while the samples cost can be refundable after you place the order.Thanks.

Q3:How much the transportation freight of samples?
The freight depends on the weight and packing size and your area.

Q4:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly based on our sample.

Q5:Can you produce according to customers’ design?
yes.we mainly do the OEM/ODM service.

Q6:What’s the minimum order quantity(MOQ)?
MOQ is 50pcs-500pcs each model size.

Q7:How about the delivery time?
For sample: 10-15 days
For order: 30-45 days
