Feature:

1. STRONG COMPATIBILITY: The motherboard is based on the H110 chipset and support for 6th 7th 8th processor, including such as support for Core i7 8700 8700K, support for i5 8600K 8600 8500 8400, support for i7-7700K i7-7700, support for i5-7600K i5-7600 i5-7500, support for Pentium G5600 G5500 G5400, support for Celeron G4920 G4900, etc.
2. DUAL CHANNEL DDR4 MEMORY SUPPORT: This motherboard supports two 240 pin DDR4 SDRAM desktop memory slots without buffering. It supports 2 channel effective frequencies of DDR4 2133 2400 2666 MHZ, with a maximum support of 32GB per slot and a maximum capacity of 64GB.
3. HIGH SPEED: The computer motherboard features a high speed M.2 Nvme hard drive interface and M.2 WIFI slot, fast PCIE hard drive switching and Serial ATA 3.0 (6GB/s) channels, onboard support for Realtek 10 100 1000Mbps network card and support for Realtek ALC662 high grade sound independent sound card.

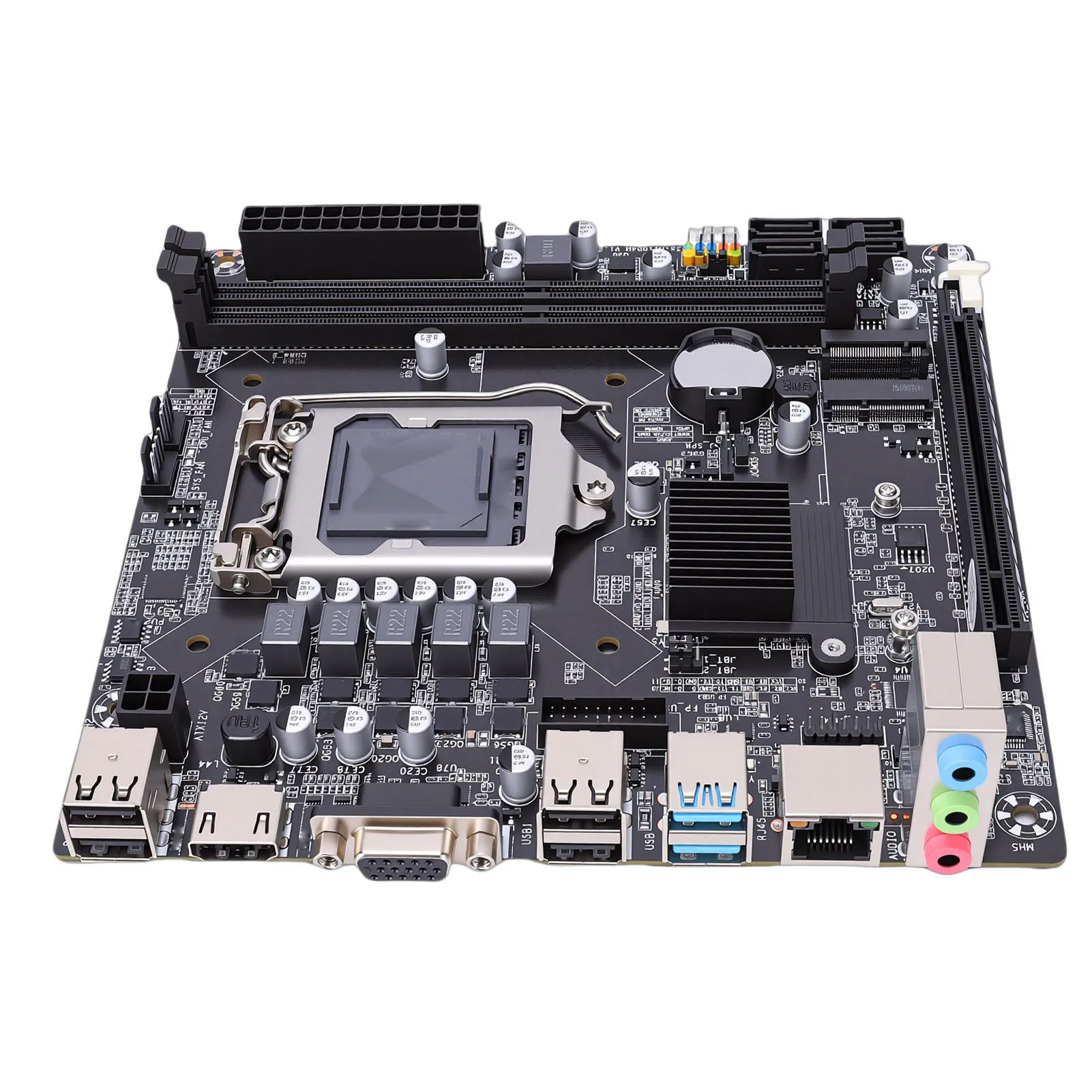

4. VERSATILE I/O PORTS: The desktop motherboard offers a variety of I/O options, including 4 USB 2.0 ports, 2 USB 3.0 ports, 1 VGA port, 1 HD multimedia interface port, 1 RJ45 port, and one 3 in 1 sound port (line in line out microphone in).
5. EXPANSIVE STORAGE AND EXPANSION SLOTS: The PC motherboard has 4 Serial ATA 3.0 (6GB/s) ports, allowing you to connect multiple storage devices. The expansion slots include 1 PCI Express x16 slot, 1 slot supporting M.2 NVMe interface and 1 M.2 WIFI slot.
6. ENDURING DESIGN: Crafted with an 8 layer PCB and 8 phase power design, this mainboard ensures stability and longevity. The all solid capacitor construction and robust 24+8 pin power connectors help prevent bending, promoting reliable operation under heavy loads.

Specification:

Item Type: Gaming Motherboard
Model: H110
Material: PCB
Battery: CR2032 (built in) Capacity: 220mAh
CPU: Support for 6th 7th 8th (support for SKYlake) Support for Intel 14nm CPU (LGA1151)
Memory: 2×240 pin DDR4 SDRAM slots, maximum memory support 64GB, support dual channel DDR4 2133 2400 2666 MHZ
Storage Interface: 4 x Serial ATA 3.0 (6GB/s) ports, 1x M.2 Nvme slot
Integrated LAN: Onboard Support for Realtek 10 100 1000Mbps LAN, 1xM.2 WiFi
Expansion Slots: 1x PCI Express x16 slot
Integrated Sound: Onboard Support for Realtek ALC662 high grade sound independent sound card
Power Interface: 1xATXPWR 24 pin interface, 1×8 pin ATX interface
Architecture: Mini-ITX architecture (17×17 cm/6.69×6.69 inches)
I/O Ports: 4xUSB2.0, 2xUSB 3.0, 1x VGA port, 1x HD Multimedia Interface port, 1x RJ45 port, 1x 3 in 1 sound port (line in line out mic in)

How to Use:

Take out the product and it is ready for use

Package List:

1 x Motherboard
1 x Cable
1 x Bracket
